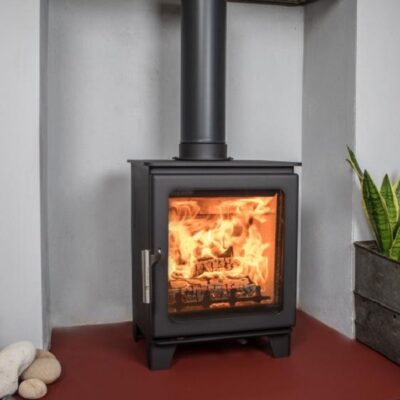

Newbourne 35FS Direct Air Wood Burning Ecodesign Stove
This superb collection has been designed not only as attractive appliances for the home but also as high performance stoves, able to meet the environmental requirements of today and tomorrow and approved for use in smoke control areas throughout the UK. The Newbourne Range offers contemporary and sleek designs with the latest technology in primary air control plus a secondary airwash which effectively keeps the fire window clean, and tertiary air to ensure a clean burn high-efficiency performance, whether burning wood or smokeless fuel. Both the Newbourne 35FS and 40FS have now had their fireboxes uprated to comply with the new environmental Ecodesign standards 2022
SPECIFICATIONS
| Newbourne 35FS | |
|---|---|
| Width x depth x height (mm) | 376 x 356 x 570 |
| Weight (kg) | 76 |
| Log length (mm) | 260 |
| Flue dia. (mm) outlet & position | 128 Top/rear |
| Nominal output (kW) | 4.6 |
| Range rating (kW) | 1.5-6 |
| Distance from rear of stove to centre of top flue outlet (mm) | 131 |
| Distance to flammable materials: From back (mm) | 400 |
| – From back with optional heat shield fitted (mm) | 185 |
| – From sides (mm) | 400 |
| – From front (mm) | 800 |
| Heating area (m²) | 20-70 |
| Efficiency (net): Wood | 82.6% |
